High-quality autoclaves
Lafomed is a brand of high-end autoclaves that have gained recognition in more than 50 countries around the globe. The autoclaves meet all medical standards and directives. These devices are characterized by low failure rates. Their microprocessors use electronic modules of the latest generation. Lafomed aut oclaves are characterized by high efficiency and durability, and their operation is simple and intuitive.
Top-class autoclave

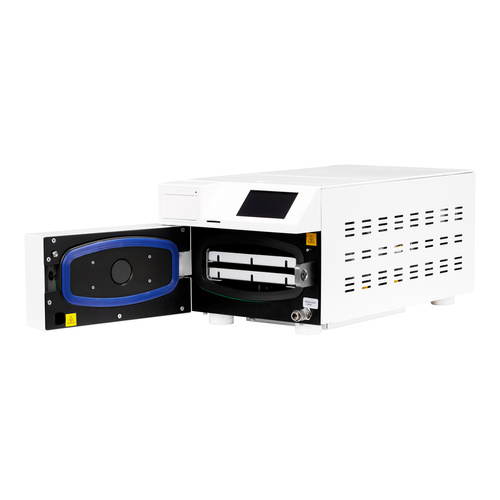

AutoclaveLafomed LFSS03AA Touch with 3 L printer is particularly recommended for hospital departments, dentistry and ophthalmology, as well as for Biology Institutes conducting research projects. It will be perfect for hair and beauty salons, tattoo studios or aesthetic medicine salons. The device is designed to sterilize both medical and non-medical instruments. Thanks to the cooperation of the technical departments of Lafomed and Activeshop, a device was created that will satisfy the most demanding users. Sterilization with the highest class B medical autoclave ensures full efficiency and safety.
Functionality you will appreciate
This is a compact device with a built-in thermal printer. The autoclave has an LCD touchscreen display and an input for an SD memory card, where you can save the results of the conducted cycle. It has 7 fully automatic programs; 4 sterilization programs, 2 test programs and a drying program. The menu is intuitive, and the friendly interface is in Polish. The preheat and keep-warm function will also prove useful. The Lafomed Touch 3L autoclave is distinguished by the availability of fast sterilization programs. The shortest cycle for instrument sterilization takes 6 minutes including drying, and for packaged instruments only 8 minutes. The device has a built-in tank for clean (distilled) water, which is used for sterilization, as well as a collection tank for used water. The self-diagnosis system will effectively protect against damage and preserve the life of the device. The autoclave meets all the requirements of the Sanitary Inspectorate, and after purchasing this model there is no need to report it to the Office of Technical Inspection.
Automatic sterilization programs
Sterilization programs | Type of load | Total cycle time* |
134° Fast | Packaged and unpackaged; solid, textile, indented | 8 minutes |
134° Universal | Packaged and unpackaged; solid, textile, dimpled | 10 minutes |
121° Universal | Packaged and unpackaged; solid, textile, dimpled | 28 minutes |
134° Lite | Unpackaged; solid (to be used immediately after sterilization) | 6 minutes |
*Refers to the time after the device has heated up.
Extendable warranty (24+12)
The Lafomed autoclave comes with a 24-month warranty. It is worth mentioning here that the warranty does not depend on the number of cycles of the autoclave. It is possible to extend the warranty for another 12 months, provided that you pass a paid technical inspection at an authorized service center before the expiration of the basic warranty. This is an option that applies to devices purchased from 22.08.2022. In addition, a technical passport is also included free of charge!
Specifications:
Class B medical | This is the highest class of autoclaves that allow the most effective sterilization of unwrapped and wrapped items, regardless of the type of instruments. |
High quality workmanship | Autoclave made according to ISO 13485 standard and CE 1023 certified. |
3L capacity | This is a small but very practical autoclave. Unlike cassette autoclaves, Lafomed 3-liter autoclaves have a water reservoir, have an option to adjust the drying time, and the chamber is made of stainless steel. They also have lower power consumption, so they are more economical. |
Built-in thermal printer | No ink is required. |
Sterilize instruments in bulk or in packages | The Class B autoclave allows sterilization of both unpackaged instruments and packaged instruments (bulk or hollow). |
LCD display | Indicates time, temperature, pressure and cycle progress. |
Easy and efficient operation | Intuitive menu allows quick program selection or parameter settings, and the friendly interface is in Polish. |
7 automatic programs | 4 sterilization programs, 2 test programs; Bowie & Dick and vacuum test, and a drying program. |
Short sterilization | The fastest program takes 6 minutes including drying, and only 8 minutes for packaged instruments. The autoclave also has a drying time control option . |
SD memory card reader | Save data digitally and don't worry about losing or undermining the valuable evidence you need. |
Compact size | It takes up little space and is easier to carry than larger autoclaves. |
Top-of-the-line Japanese ULVAC vacuum pump | The presence of this pump made it possible to place two tanks (for clean and used water) inside the unit. |

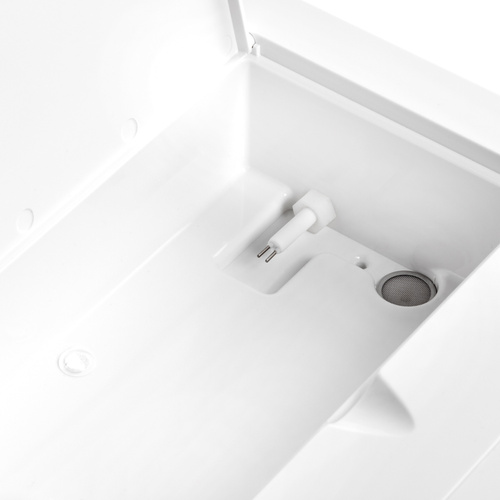

Built-in tanks for clean water and used water | The clean water tank is for distilled or deionized water, which is used for sterilization. |
Ability to drain used water from the front or rear of the unit | A used water drain is required when the tank is full or close to full. |
Preheat and keep warm function | The unit will begin to preheat as soon as it is turned on and will maintain heat until it is turned off, so as to shorten the sterilization time. |
Self-diagnosis system | Effective protection against damage. |
Double door lock | Advanced system that secures the door mechanically and electronically. |

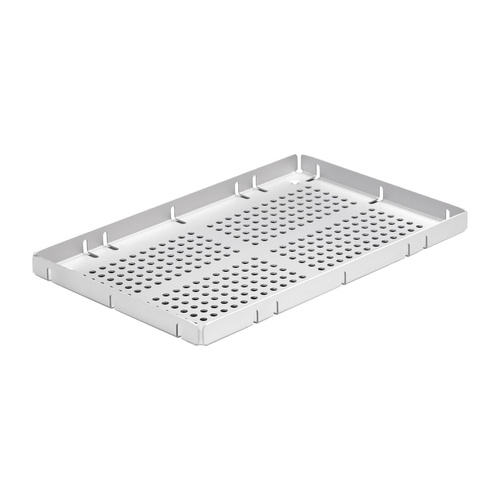

Features two instrument trays | Optionally allows insertion of a dental cassette. |
304 grade stainless steel chamber | This makes it extremely durable and more aesthetically pleasing, and demonstrates the high quality of the unit. |
High-quality bacterial filter | Replaceable every 150 cycles, filters available in our store. |
Meets the requirements of the Sanitary Inspectorate | No registration with the UDT is required. |
Technical passport | Included passport worth 250 PLN. |
Warranty | 24 months warranty with the option to extend for another 12 months. |
Watch the video with information on using medical autoclaves:
Technical data:
Certifications | CE 1023, ISO 13485 Standard PN-EN 13060: 2004 + A2: 2010 |
Power | 2.9 KW |
Voltage | 220-240 V |
Frequency | 50 Hz |
Maximum working temperature | 137 ℃ |
Maximum working pressure | 0.24 MPa |
Design pressure | -0.1 / 0.27 MPa; |
Set pressure of safety valve | 0.24 MPa |
Safety valve opening pressure | 0.24 MPa ~ 0.26 MPa |
Capacity of clean water tank | 1 Liter |
Capacity of used water tank | 0,8 L |
Automatic programs | - 134 ℃ Quick - 134 ℃ Universal - 134 ℃ Full - 121 ℃ Universal - Vacuum test - Bowie&Dick / Helix test - Drying |
Vacuum times | 1-10 times |
Drying times | 1-25min |
Time control | 4-60min |
Chamber capacity | 3 liters |
Dimensions of the appliance | 24.5 x 29 x 59 cm |
Dimensions of packaging | 30 x 34 x 65 cm |
Dimensions of the chamber | 19 x 7.5; depth 32 cm |
Chamber material | 304 stainless steel |
Net weight | 20 kg |
Weight with packaging | 24 kg |
Package includes: Autoclave, drain line, 2 trays, power cord, tray stand, tray removal handle, instruction manual in Polish, technical passport.
Watch the video comparing the series of autoclaves available in our store:
