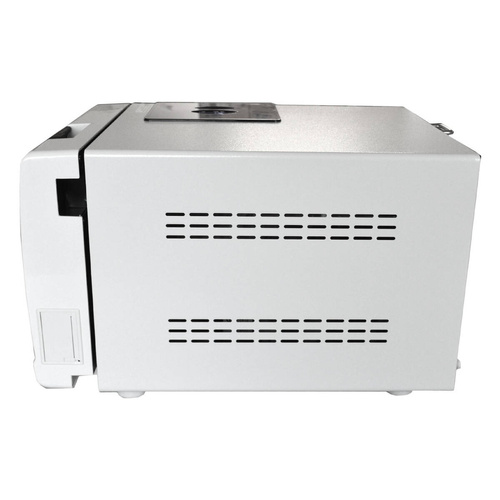

Yeson E-22L series Black Line LCD autoclave

Yeson E series 22L Black Line LCD medical autoclave. Capacity 22 liters. Built-in thermal printer

Autoclave by YESON E-series (LCD), chamber with a capacity of 22 liters, qualified to class B according to EN 13060. The device is designed for use in: hospitals, medical institutions (in clinics), including medical and dental offices, as well as laboratories. The autoclave can also be used for non-medical and veterinary applications. It is certified in accordance with Directive 93/42/EEC(MDD)

Autoclave (small steam sterilizer), model: E-22L can be used by doctors, sterilization technicians, as well as other professionals who have the knowledge or professional experience to use the device for its intended purpose.

The autoclave is intended in particular for hospital departments, cosmetic surgeries, dental surgeries, ophthalmology surgeries, and biological research institutes, for sterilization of all types of packaged and unpackaged charges, such as: surgical instruments, dental instruments, syringes, etc. The device is not designed to sterilize liquid substances.

Basic features:

• Class B fractional vacuum
• Built-in printer
• USB connector for flash drive
• LCD display
• Touch control buttons
• Polish and English menu
• Lock against accidental opening
• Automatic fuses
• 9 operation programs
• 2 test programs
• Delayed start function
• Pre-heating function
• Password protection function
• Internal tanks for distilled and used water
• Loading method: basket with 3 trays

Operating conditions:

• Power supply: 230V ± 10%, 50/60 Hz
• Rated power: 1950 W
• Ambient temperature: +5°C ~ +40°C
• Relative humidity (%RH): ≤ 80%
• Atmospheric pressure: > 70 kPa

Operating conditions:

• Maximum operating pressure: 0.21 ~ 0.24 MPa / 2.1 bar ~ 2.4 bara
• Maximum operating temperature: 134°C ~ 137°C

Weight and dimensions:

• Dimensions with door closed: 695 mm x 505 mm x 425 mm
• Net weight: approximately 60 kg
• Chamber dimensions: 250 x 450 mm
• Tray dimensions: top: 19.5 x 39.5 cm | middle: 21.5 x 39.5 cm | bottom: 19.5 x 39.5 cm

Other information:

• Process documentation: built-in thermal printer
• Technical passport with inspection
• Warranty: 24 months
