Yeson YS 8L series Silver Line medical autoclave

Yeson series YS 8L Silver Line medical autoclave. 8 liter capacity. Built-in thermal printer

Autoclave YESON series YS, chamber with a capacity of 8 liters, qualified to class B in accordance with the EN 13060 standard. The device is designed for use in: hospitals, medical institutions (in clinics), including medical and dental offices, as well as laboratories. The autoclave can also be used for non-medical and veterinary applications. It is certified in accordance with Directive 93/42/EEC(MDD)

Autoclave (small steam sterilizer), model: YS-8L can be used by doctors, sterilization technicians, as well as other professionals who have the knowledge or professional experience to use the device for its intended purpose.

The autoclave is designed especially for hospital departments, cosmetic surgeries, dental surgeries, ophthalmology surgeries, and biological research institutes, for sterilization of all types of packaged and unwrapped charges, such as surgical instruments, dental instruments, syringes, etc. The device is not designed to sterilize liquid substances.

Basic features:

• Stainless steel chamber
• Built-in thermal printer
• Safety valve
• Bacteriological filter
• Easy operation
• 5 ready-to-use programs
• 2 test programs - Bowie & Dick/test Helix test, vacuum test
• Lock against accidental opening
• Sterilizes packaged instruments, unwrapped instruments, cotton materials
• Option to adjust sterilization time
• Option to maintain temperature until next cycle
• Internal tanks for distilled and used water

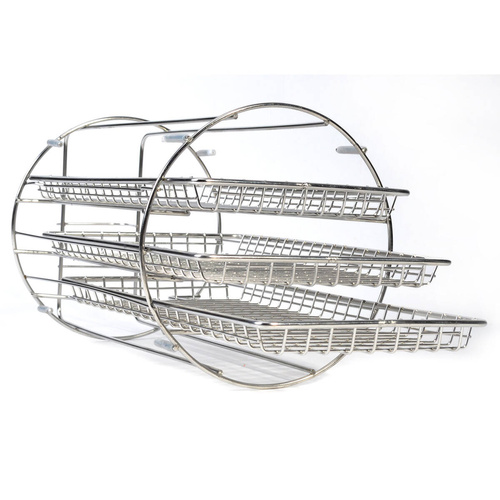

• Loading method: basket with 3 trays

Operating conditions:

• Power supply: 230V ± 10%, 50/60 Hz
• Rated power: 1750 W
• Ambient temperature: +5°C ~ +40°C
• Relative humidity (%RH): ≤ 80%
• Atmospheric pressure: > 70 kPa

Operating conditions:

• Maximum operating pressure: 0.21 ~ 0.24 MPa / 2.1 bar ~ 2.4 bara
• Maximum operating temperature: 134°C ~ 137°C

Weight and dimensions:

• Dimensions with door closed: 535 mm x 365 mm x 330 mm
• Net weight: approximately 35 kg
• Chamber dimensions: 180 x 320 mm
• Tray dimensions: top: 13 x 27 cm | middle: 15 x 27 cm | bottom: 13 x 27 cm

Other information:

• Process documentation: built-in thermal printer
• Technical passport with inspection
• Warranty: 24 months
